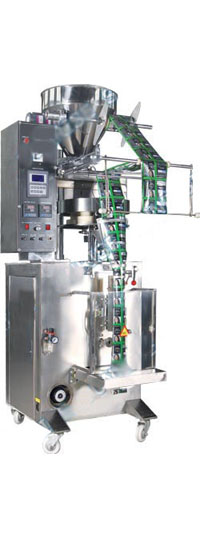

DXDK800
Automatic Multi-Function Packaging System
Applications:
The machine is suitable for packing all kinds of irregular solid (granular, powder piece) and ointment, such as washing powder, coffee tea sugar, peanut, oatmeal and inflation foodstuffs etc The processes of bag making, measuring, filling sealing cutting and counting can be done automatically And also this machine could pack the M shape bag, which is very popular in the market now Packing material include several kinds of heat-seal lamination, such as PET/plated AL/PE PET/PE NYLON etc.

Features:
1. All stainless steel cover meets to GMP standard.
2. Equipped with antipollution and dustproof device.
3. Automatic adjustment of pouch size and filling range.
4. Equipped with Nitrogen and air filling system. The max filling range is 1500ML.
5. The operation facility is controlled by American intel computer, all function is displayed with digital screen.
6. Equipped with easy open system.
7. Ink printer and conveyor are as an option.
DXDK-300
Pouch size (L)80-220mm (W)40-150mm
Capacity* 30-60 (bags/min)
Filling range 50-300ml
Dimension 1100x900x1900(mm3)
Weight 300(kg)
DXDK-500
Pouch size (L)100-260mm (W)70-225mm
Capacity* 28-60 (bags/min)
Filling range 200-500ml
Dimension 1200x800x2000(mm3)
Weight 350(kg)
DXDK-800
Pouch size (L)100-300mm (W)40-175mm
Capacity* 28-60 (bags/min)
Filling range 200-1400ml
Dimension 1200x800x2000(mm3)
Weight 350(kg)
Power 220V,50HZ,1.3KW

*Depending on product property and filling range
